Dimplex Ignite Aspire Built-in Electric Firebox

Bring the timeless character of a traditional fireplace together with advanced electric technology in the Dimplex Ignite® Aspire Built-In Electric Firebox.

Available in 30", 36", 42", and 48" sizes, the Ignite Aspire is designed to create the depth, movement, and warmth of a traditional wood fire without the maintenance of wood or gas. Dimplex's patented Dynamic-Fire™ flame effect, rhythmic inner-glow logs, glowing ember bed, crackling fire sounds, and supplemental heat work together to create an immersive and remarkably realistic fireplace experience.

With its tall portrait-style proportions and edge-to-edge glass, the Aspire is equally at home in a traditional mantel, stone surround, or clean contemporary fireplace design.

Features

• Available in 30", 36", 42" & 48" sizes
• Traditional portrait-style built-in electric firebox
• Patented Dynamic-Fire™ flame effect
• Quick-connect, moveable log set
• Rhythmic Inner Glow Logs pulse in harmony with the flames
• Tumbled glass ember media
• 3 ember-bed color themes
• Adjustable ember-bed brightness
• Realistic crackling fire sound effects
• Comfort$aver® supplemental heating system
• Supplemental heating for spaces up to approximately 1,000 sq. ft.
• Flame effect operates independently from heat
• 120V or 240V electrical connection
• Up to 8,530 BTU on 240V
• Dimplex Flame Connect® App control
• Wall-mountable remote control included
• 3-button touch controls
• Black interior surround
• Non-venting electric design
• No gas line or chimney required
• 5-year limited warranty

Sizes & Models

Size	Model	Overall Dimensions
30"	ASP30	30 9/16" W × 37 1/2" H × 17 1/2" D
36"	ASP36	36 9/16" W × 43 1/2" H × 17 1/2" D
42"	ASP42	42 9/16" W × 49 1/2" H × 17 1/2" D
48"	ASP48	48 15/16" W × 49 1/2" H × 17 1/2" D

Dynamic-Fire™ Flame Effect

At the heart of the Ignite Aspire is Dimplex's patented Dynamic-Fire™ flame technology, engineered to create a more natural and dimensional fire experience.

The flame movement works together with the glowing logs and illuminated ember bed to give the fire depth and movement reminiscent of a traditional wood-burning fireplace.

Rhythmic Inner Glow Logs

The Aspire features quick-connect, moveable logs enhanced with Dimplex's Inner Glow technology.

Rather than simply remaining illuminated, the logs gently pulse in rhythm with the dancing flames, creating the appearance of heat and light moving naturally through the fire.

The logs can also be arranged to personalize the presentation within the firebox.

Glowing Ember Bed

Tumbled glass ember media adds another layer of depth beneath the log set.

Choose from three ember-bed color themes and adjust the brightness to create anything from a subtle warm glow to a more dramatic illuminated firebox.

Comfort$aver® Heating

The Dimplex Ignite Aspire is more than a visual focal point. Its integrated Comfort$aver® heating system provides on-demand supplemental warmth for spaces up to approximately 1,000 square feet.

The firebox can be connected to either 120V or 240V, allowing heating performance to be matched to the installation.

Electrical Connection	Wattage	Heat Output
120V	1,500W	5,118 BTU/hr
240V	2,500W	8,530 BTU/hr

The heater can also be disabled, allowing you to enjoy the flame, logs, lighting, and sound effects throughout the year without adding heat to the room.

Crackling Fire Sound

Integrated crackling sound effects add another dimension to the fireplace experience.

Combined with the moving flames, pulsing logs, and illuminated ember bed, the sound of a natural wood fire helps create a warm and inviting atmosphere without the smoke, ash, or maintenance of a wood-burning fireplace.

Flame Connect® App

Control and personalize your Ignite Aspire using the Dimplex Flame Connect® App.

Adjust fireplace settings from your compatible smart device, giving you convenient control over the fire experience without leaving your seat.

A wall-mountable remote control and discreet 3-button touch display provide additional control options.

Multiple Installation Configurations

The Ignite Aspire can create more than a traditional single-sided fireplace.

With optional convertible trim kits, compatible installations can be configured as:

• Front-Facing
• Left Corner
• Right Corner
• Bay / Three-Sided

This flexibility allows the Aspire to become part of a wide range of custom fireplace and architectural designs.

Convertible trim kits required for corner and bay configurations are sold separately.

Year-Round Enjoyment

The flame and lighting effects can operate independently from the heater, allowing you to enjoy the look and atmosphere of the Aspire throughout every season.

Turn on the heat during cooler weather or enjoy the flames, glowing logs, ember bed, and crackling sounds without heat when the room is already comfortable.

Ideal For

• Living room fireplaces
• Custom fireplace surrounds
• Stone and masonry-style installations
• Traditional mantels
• Feature walls
• Bedrooms and primary suites
• Great rooms
• Offices and reception areas
• Hospitality spaces
• Residential and commercial interiors

What's Included

• Dimplex Ignite® Aspire Electric Firebox
• Quick-Connect Inner Glow Log Set
• Tumbled Glass Ember Media
• Integrated Comfort$aver® Heater
• Wall-Mountable Remote Control
• Integrated Touch Controls
• Flame Connect® App Compatibility
• Manufacturer Documentation

Optional Accessories

Depending on the installation, optional accessories may include:

• Left-Corner Convertible Trim Kit
• Right-Corner Convertible Trim Kit
• Bay / Three-Sided Convertible Trim Kit

Accessories are sold separately unless specifically stated otherwise.

Important Installation Information

The Dimplex Ignite Aspire is a built-in electric firebox designed for permanent installation.

The firebox supports 120V and 240V electrical configurations, with heating output dependent upon the electrical connection.

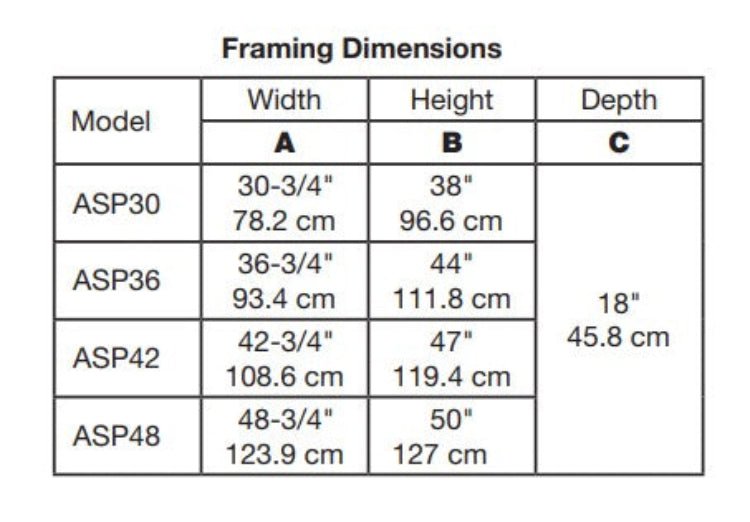

Always use the framing dimensions and electrical requirements specified by Dimplex for the exact Aspire model being installed. Do not frame the fireplace opening based solely on the nominal fireplace size.

Professional installation is recommended, particularly for hardwired 240V installations and custom corner or bay configurations.

Important

The Dimplex Ignite® Aspire produces its flame effect electrically and requires no gas line, chimney, or traditional fireplace venting.

Always follow Dimplex's current framing, electrical, clearance, installation, and operating instructions for the selected model.
