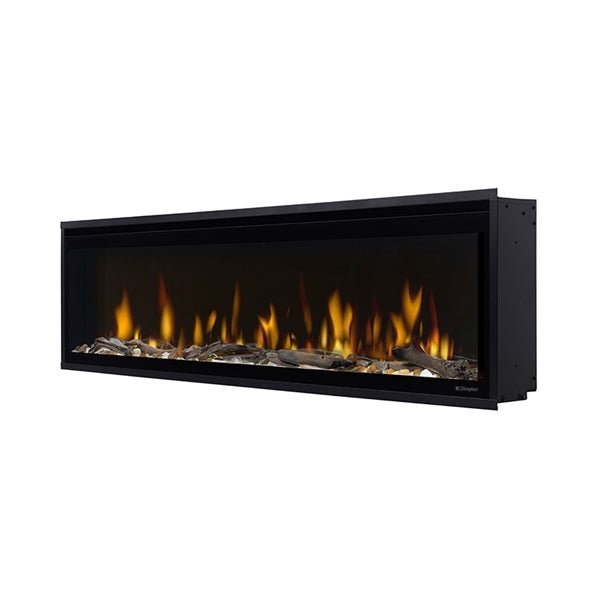

Dimplex Ignite Evolve Built-in Linear Electric Fireplace

Create a sophisticated focal point with the Dimplex Ignite® Evolve Built-In Linear Electric Fireplace. Designed with an expansive edge-to-edge viewing area, lifelike flames, layered media, customizable lighting, and efficient supplemental heat, the Ignite Evolve brings warmth and architectural presence to modern interiors.

Available in 50", 60", 74", and 100" sizes, the Evolve's slim profile integrates beautifully into feature walls, media walls, custom built-ins, and contemporary fireplace surrounds.

With realistic driftwood, multiple crystal and glass media options, Comfort$aver® heating technology, and convenient app, remote, and onboard controls, the Ignite Evolve gives you the flexibility to personalize both the look and comfort of your fireplace.

Features

• Premium built-in linear electric fireplace
• Available in 50", 60", 74" & 100"
• Expansive edge-to-edge fireplace presentation
• Realistic flame effect with adjustable settings
• Customizable flame and media-bed lighting
• Multiple included media options
• Lifelike driftwood included
• Tumbled glass embers included
• Acrylic crystal media included
• Integrated Comfort$aver® heating technology
• 120V or 240V operation
• Up to 2,500 watts / 8,530 BTU at 240V
• Flame effects can operate independently from heat
• Thermostatic temperature control
• Flame Connect® App compatible
• Multi-function remote control included
• Integrated fireplace controls
• Built-in timer
• Energy-efficient LED lighting
• Slim built-in design
• No gas line, chimney, or traditional venting required

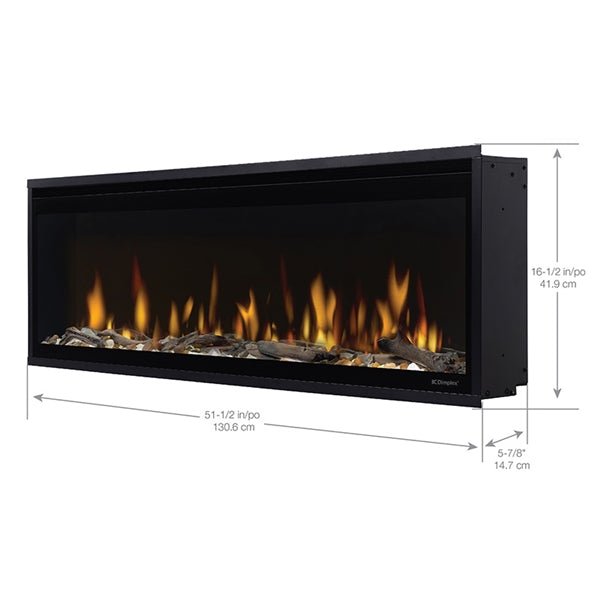

Sizes & Models

Size	Model	Overall Dimensions
50"	EVO50	51⅜" W × 16½" H × 5¾" D
60"	EVO60	61¼" W × 16½" H × 5¾" D
74"	EVO74	75⅜" W × 16½" H × 5¾" D
100"	EVO100	101⅜" W × 16½" H × 5¾" D

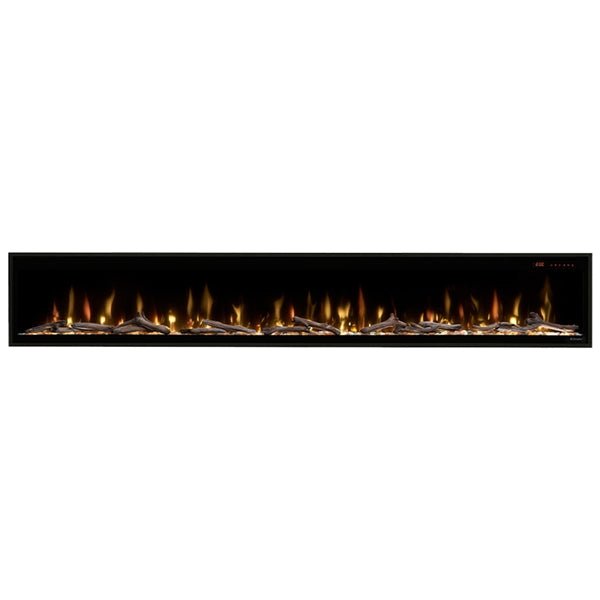

Immersive Flame Experience

The Ignite Evolve creates a wide, natural-looking flame presentation designed to complement its sleek linear proportions.

Adjust the flame appearance and lighting to create the atmosphere you want—from the warm glow of a traditional fire to a more contemporary illuminated display.

The edge-to-edge design keeps visible framing to a minimum, allowing the fire itself to become the focus of the room.

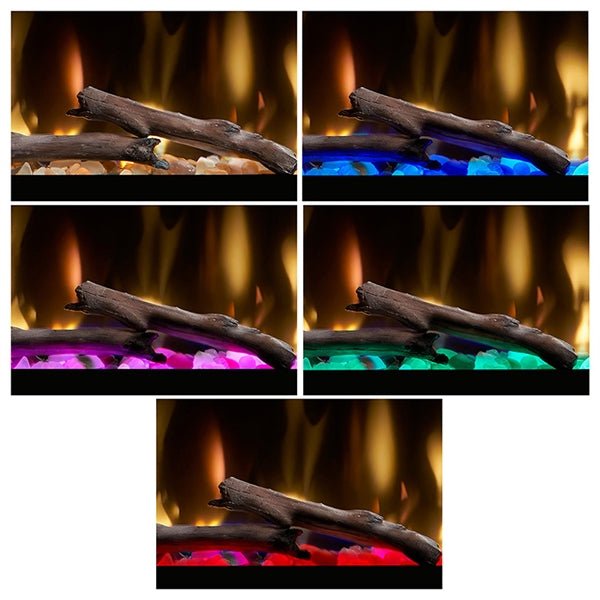

Layered Media Included

The Ignite Evolve includes a versatile collection of decorative media so you can personalize the finished fireplace.

Included media consists of:

• Lifelike Driftwood
• Tumbled Glass Embers
• Medium Acrylic Crystals
• Large Acrylic Crystals

Combine the natural texture of the driftwood with reflective glass and crystals to create a layered ember bed with impressive depth.

The media can be arranged to complement anything from a warm organic interior to a clean contemporary feature wall.

Comfort$aver® Heating Technology

The Ignite Evolve combines its visual presentation with Dimplex's efficient Comfort$aver® heating technology.

Rather than simply cycling between full power and off, Comfort$aver is designed to adjust heating performance to help maintain a more consistent room temperature while improving comfort and energy efficiency.

The fireplace supports both 120V and 240V electrical configurations.

Electrical Connection	Power	Maximum Heat Output
120V	1,500W	Approx. 5,118 BTU/hr
240V	2,500W	Approx. 8,530 BTU/hr

Year-Round Enjoyment

Enjoy the appearance of your fireplace even when you don't need additional warmth.

The flame and lighting effects can operate independently from the heater, allowing the Ignite Evolve to remain a focal point throughout every season.

Turn on supplemental heat during cooler weather or enjoy flame-only operation when the room is already comfortable.

Flame Connect® App

The Ignite Evolve is compatible with the Dimplex Flame Connect® App, giving you convenient control from a compatible mobile device.

Personalize fireplace settings, adjust flame effects and lighting, and manage your fireplace from your phone.

The included remote control and integrated fireplace controls provide additional ways to operate the unit.

Slim Built-In Design

At approximately 5¾ inches deep, the Ignite Evolve provides an expansive fireplace presentation without requiring the depth of a traditional fireplace.

Its slim profile makes it especially attractive for feature walls and renovation projects where preserving floor space is important.

Flexible Wall Installation

The Ignite Evolve can be incorporated into both 2" × 4" and 2" × 6" wall construction when installed according to Dimplex's requirements.

Approximate framing depth is:

2" × 4" Installation: 3½"

2" × 6" Installation: 5½"

Always use Dimplex's current framing specifications for the exact fireplace size before construction begins.

Ideal For

The Ignite Evolve is an excellent choice for:

• Living room feature walls
• Media and entertainment walls
• Great rooms
• Bedrooms and primary suites
• Custom fireplace surrounds
• Contemporary built-ins
• Residential renovations
• New construction
• Offices and reception areas
• Hospitality spaces
• Commercial interiors

What's Included

• Dimplex Ignite® Evolve Linear Electric Fireplace
• Front Glass
• Mirrored Glass
• Lifelike Driftwood
• Tumbled Glass Ember Media
• Medium Acrylic Crystals
• Large Acrylic Crystals
• Integrated Comfort$aver® Heater
• Multi-Function Remote Control
• Integrated Fireplace Controls
• Manufacturer Documentation

Important Installation Information

The Dimplex Ignite Evolve is designed for a permanent built-in installation.

The fireplace supports both 120V and 240V electrical configurations, with heating performance dependent upon the electrical connection.

Always use the framing dimensions specified by Dimplex for your exact model rather than framing according to the nominal 50", 60", 74", or 100" fireplace size.

Professional installation is recommended, particularly for hardwired electrical installations.

Important

The Dimplex Ignite® Evolve Built-In Linear Electric Fireplace creates its flame effect electrically and requires no gas line, chimney, or traditional fireplace venting.

Fireplace dimensions, framing dimensions, and media quantities vary by size.

Always follow Dimplex's current framing, electrical, clearance, finishing, and installation requirements for the selected model.
