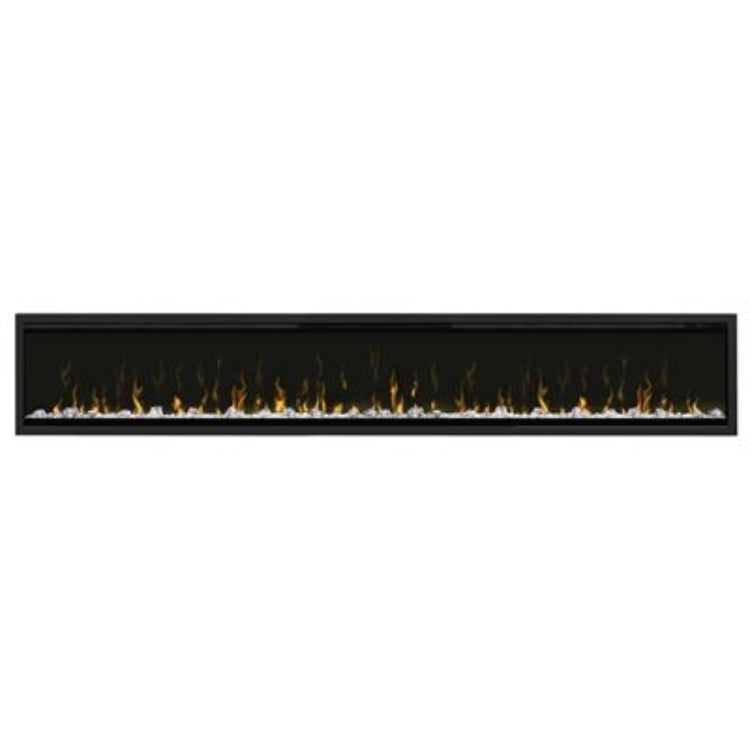

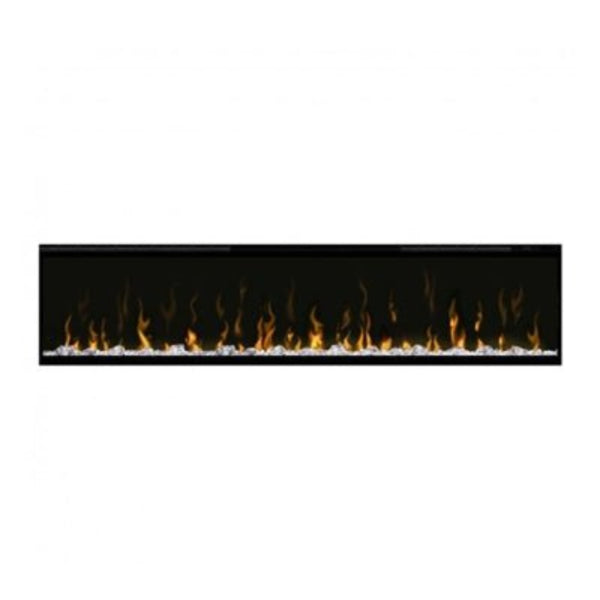

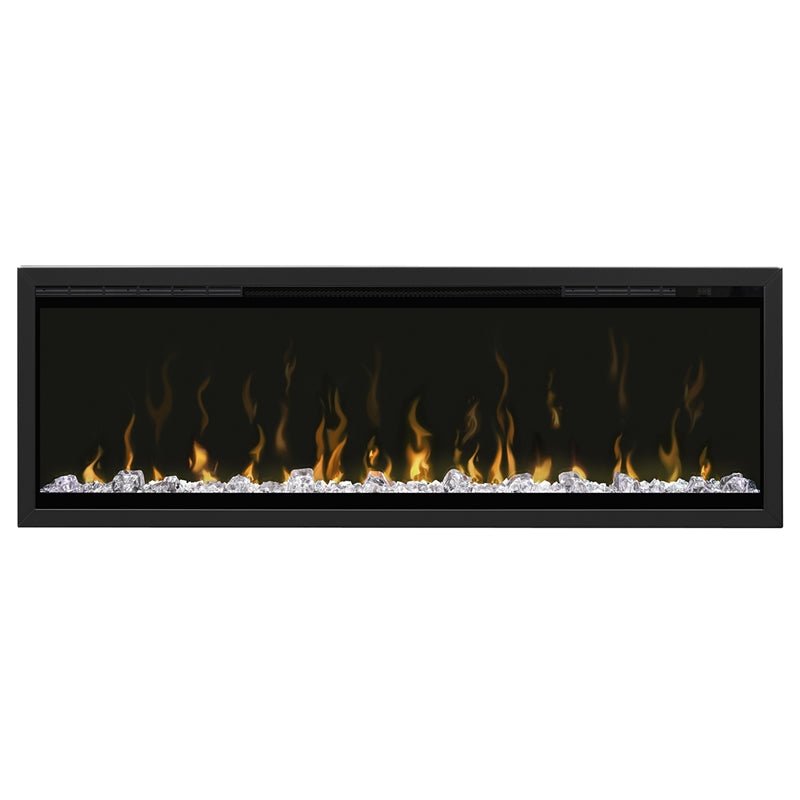

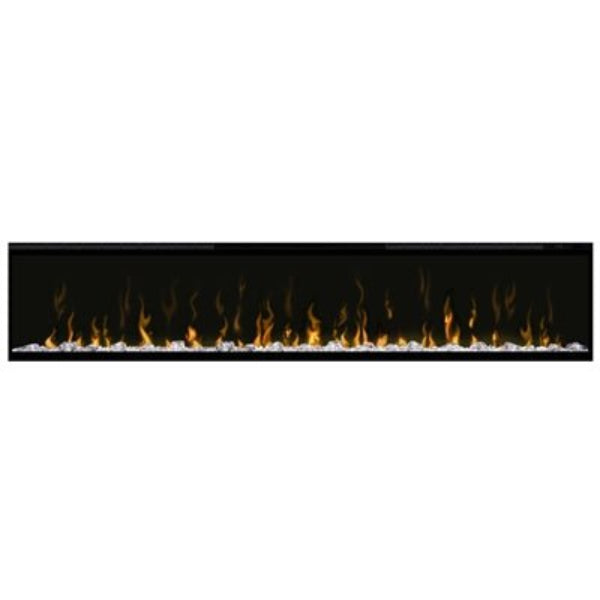

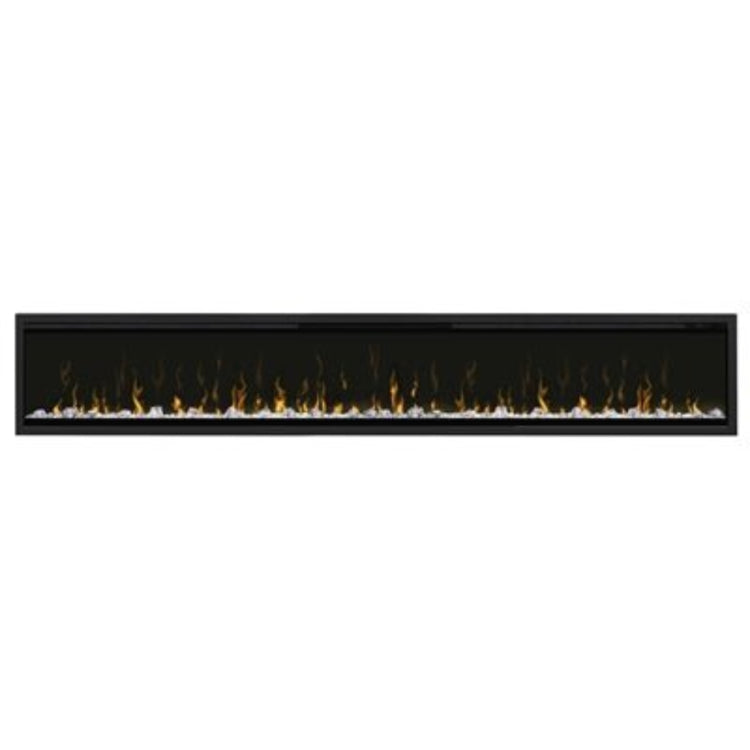

Dimplex IgniteXL Built-in Linear Electric Fireplace (XLF Series)

Create a striking modern focal point with the Dimplex IgniteXL® Built-In Linear Electric Fireplace. Designed for a clean, edge-to-edge installation, the IgniteXL combines an expansive panoramic viewing area with vivid flames, customizable lighting, contemporary media, and powerful supplemental heat.

Available in 50", 60", 74", and 100" sizes, the IgniteXL offers the flexibility to complement everything from a residential feature wall to a dramatic commercial installation. Its slim built-in profile delivers the presence of a traditional fireplace without the need for gas, a chimney, or venting.

With Dimplex's Multi-Fire XD® flame technology, Comfort$aver® heating system, customizable Color Themes, and included media, the IgniteXL creates a sophisticated fireplace experience that can be enjoyed with or without heat throughout the year.

Features

• Premium built-in linear electric fireplace
• Available in 50", 60", 74" & 100"
• Multi-Fire XD® Flame Effect
• Edge-to-edge glass for a clean panoramic view
• Contemporary linear design
• Customizable flame and media-bed colors
• Multiple Color Themes
• Natural-looking flame movement
• Acrylic Ice ember media included
• Driftwood-style media included
• Integrated Comfort$aver® heating system
• Supplemental heat for spaces up to approximately 1,000 sq. ft.
• Flame effect operates independently from heat
• Built-in thermostat
• Heat-disable function
• Multi-function remote control included
• Built-in touch controls
• 120V or 240V installation
• Hardwire installation
• Optional trim kit available for 2" × 4" wall construction
• No gas line, chimney, or venting required

Sizes & Models

Size	Model	Overall Dimensions
50"	XLF50	Approx. 51⅜" W × 16½" H × 5⅞" D
60"	XLF60	Approx. 61⅜" W × 16½" H × 5⅞" D
74"	XLF74	Approx. 75⅜" W × 16½" H × 5⅞" D
100"	XLF100	Approx. 101⅜" W × 16½" H × 5⅞" D

Multi-Fire XD® Flame Technology

Dimplex's Multi-Fire XD® technology creates a vivid flame presentation designed to add movement and depth across the expansive linear viewing area.

The flame effect rises above the illuminated media bed, creating a clean contemporary fire presentation that can be customized to complement your room and mood.

Customize Your Fireplace

Change the appearance of your IgniteXL with Dimplex's customizable Color Themes.

Choose a warm, traditional presentation or introduce more contemporary color combinations to complement modern interiors.

The illuminated media bed and flame effects work together to create a layered fireplace presentation that looks equally impressive during the day or evening.

Contemporary Media Included

The IgniteXL includes media designed to enhance its modern linear appearance.

Acrylic Ice reflects the integrated lighting and adds sparkle and dimension across the ember bed.

The included driftwood-style media introduces natural texture and warmth, allowing you to create a more organic fireplace presentation.

Arrange the media to create a finished look that complements your space.

Comfort$aver® Heating System

The IgniteXL combines its contemporary flame presentation with Dimplex's efficient Comfort$aver® heating system.

The concealed ceramic heater provides supplemental warmth for spaces up to approximately 1,000 square feet, while thermostatic control helps maintain your preferred comfort level.

The fireplace can be connected at 120V or 240V, with heating performance dependent on the electrical configuration.

Year-Round Flame Operation

Enjoy your IgniteXL during every season.

The flame and lighting effects operate independently from the heater, allowing you to enjoy the ambiance of the fireplace without adding warmth to the room.

Turn on the heater during cooler weather, then switch to flame-only operation when supplemental heat isn't needed.

Edge-to-Edge Glass

The IgniteXL is designed around an expansive edge-to-edge glass viewing area.

Minimal visible framing keeps attention on the flame and illuminated media, creating the clean architectural appearance that works particularly well in modern feature walls and custom built-ins.

Slim Built-In Design

With a firebox depth of approximately 5⅞ inches, the IgniteXL provides an impressive linear fireplace presentation without requiring the depth of a traditional fireplace.

For installations using standard 2" × 4" wall construction, an optional Dimplex trim accessory kit is available.

This makes the IgniteXL an excellent option for both new construction and remodeling projects where installation depth matters.

Ideal For

• Living room feature walls
• Media and entertainment walls
• Bedrooms and primary suites
• Great rooms
• Custom built-ins
• Contemporary fireplace surrounds
• Residential renovations
• New construction
• Offices and reception areas
• Hospitality and commercial spaces

Electrical Options

The IgniteXL supports both 120V and 240V electrical configurations.

Higher-voltage installation provides increased heating capability, while the fireplace's visual effects can be enjoyed independently from the heater.

Always follow the electrical specifications provided by Dimplex for your exact fireplace size and installation configuration.

Convenient Controls

An included multi-function remote control gives you convenient access to the fireplace's primary functions from across the room.

Integrated controls on the fireplace provide additional operation while maintaining the clean appearance of the installation.

Control functions include fireplace power, flame appearance, media-bed lighting, heat, thermostat, and additional fireplace settings.

Optional 2" × 4" Trim Kit

For installations where standard 2" × 4" wall construction is desired, Dimplex offers an optional IgniteXL Trim Accessory Kit.

Available trim kits correspond with each fireplace size:

• 50" – XLFTRIM50
• 60" – XLFTRIM60
• 74" – XLFTRIM74
• 100" – XLFTRIM100

Trim kits are sold separately.

What's Included

• Dimplex IgniteXL® Linear Electric Fireplace
• Acrylic Ice Media
• Driftwood-Style Media
• Integrated Comfort$aver® Heater
• Multi-Function Remote Control
• Integrated Fireplace Controls
• Manufacturer Documentation

Important Installation Information

The Dimplex IgniteXL is designed for a built-in, hardwired installation.

Always use Dimplex's framing dimensions for the exact model being installed rather than framing according to the nominal 50", 60", 74", or 100" fireplace size.

An optional trim kit is available when installing the fireplace into standard 2" × 4" wall construction.

Professional installation is recommended, particularly for 240V electrical configurations.

Important

The Dimplex IgniteXL® Built-In Linear Electric Fireplace produces its flame effect electrically and requires no gas line, chimney, or traditional fireplace venting.

Heating performance varies according to electrical configuration.

Always follow Dimplex's current framing, electrical, clearance, finishing, and installation requirements for the selected model.
