True Flame Kalea Bay Outdoor Linear Fireplace with LED Lights

Create a dramatic architectural focal point with the TrueFlame Kalea Bay Outdoor Linear Gas Fireplace. Designed specifically for outdoor living, the Kalea Bay combines a clean, contemporary linear profile with the beauty of a real gas flame and durable stainless-steel construction.

Available in 36", 48", 60", and 72" sizes, each Kalea Bay features a generous 16-inch-tall opening that provides an impressive view of the flames. Its vent-free outdoor design eliminates the need for a chimney or traditional venting system, providing greater flexibility when incorporating the fireplace into outdoor walls, patios, pool areas, kitchens, and entertaining spaces.

The fireplace is constructed from weather- and corrosion-resistant 304 stainless steel and can be installed as a traditional single-sided fireplace or converted to a striking see-through configuration with the appropriate optional conversion kit.

Features

• Premium outdoor linear gas fireplace
• Available in 36", 48", 60" & 72" sizes
• Generous 16" tall viewing opening
• Weather- and corrosion-resistant 304 stainless-steel firebox and burner
• Contemporary linear design
• No chimney or traditional venting required
• Installs as a single-sided fireplace
• Optional see-through conversion kit available
• EcoFlow electronic ignition system
• Flame-sensing safety shutoff
• Automatic relight functionality
• High/low flame control
• Tempered glass wind deflector helps protect the flame
• Control components housed in a stainless-steel cabinet
• Required cross-ventilation components included
• Natural Gas and Liquid Propane configurations available
• Decorative fire media options available separately
• Designed specifically for outdoor installation

Size & Performance

Size	Viewing Opening	Maximum Heat Output
36"	36" W × 16" H	31,000 BTU
48"	48" W × 16" H	43,500 BTU
60"	60" W × 16" H	50,000 BTU
72"	72" W × 16" H	65,000 BTU

Choose Your Size

36" Kalea Bay

The 36-inch model delivers the contemporary look of the Kalea Bay in a more compact footprint, making it ideal for smaller patios, outdoor kitchens, and architectural accent walls.

Maximum Output: 31,000 BTU
Viewing Opening: 36" W × 16" H

48" Kalea Bay

The 48-inch model provides a balanced linear profile that works beautifully in medium-sized outdoor living spaces and conversational areas.

Maximum Output: 43,500 BTU
Viewing Opening: 48" W × 16" H

60" Kalea Bay

The 60-inch Kalea Bay creates a substantial focal point with a longer ribbon of flame, making it an excellent choice for larger patios, pool areas, outdoor kitchens, and entertainment spaces.

Maximum Output: 50,000 BTU
Viewing Opening: 60" W × 16" H

72" Kalea Bay

For maximum architectural impact, the 72-inch Kalea Bay delivers an expansive linear flame presentation ideal for large-scale outdoor living spaces.

Maximum Output: 65,000 BTU
Viewing Opening: 72" W × 16" H

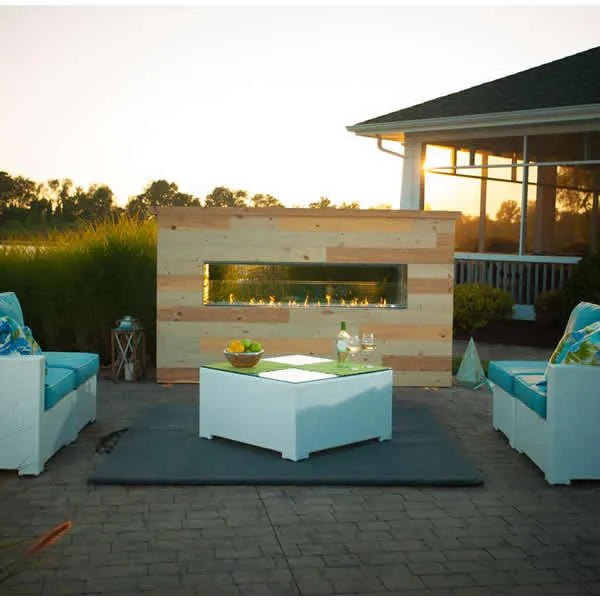

Single-Sided or See-Through

The Kalea Bay provides exceptional design flexibility.

Install it as a single-sided fireplace for a traditional built-in presentation, or add the compatible See-Through Conversion Kit to create a dramatic fireplace that can be enjoyed from both sides.

A see-through installation is especially striking when incorporated between two outdoor living areas, such as a patio and pool area, or between an outdoor kitchen and lounge.

See-Through Conversion Kit sold separately.

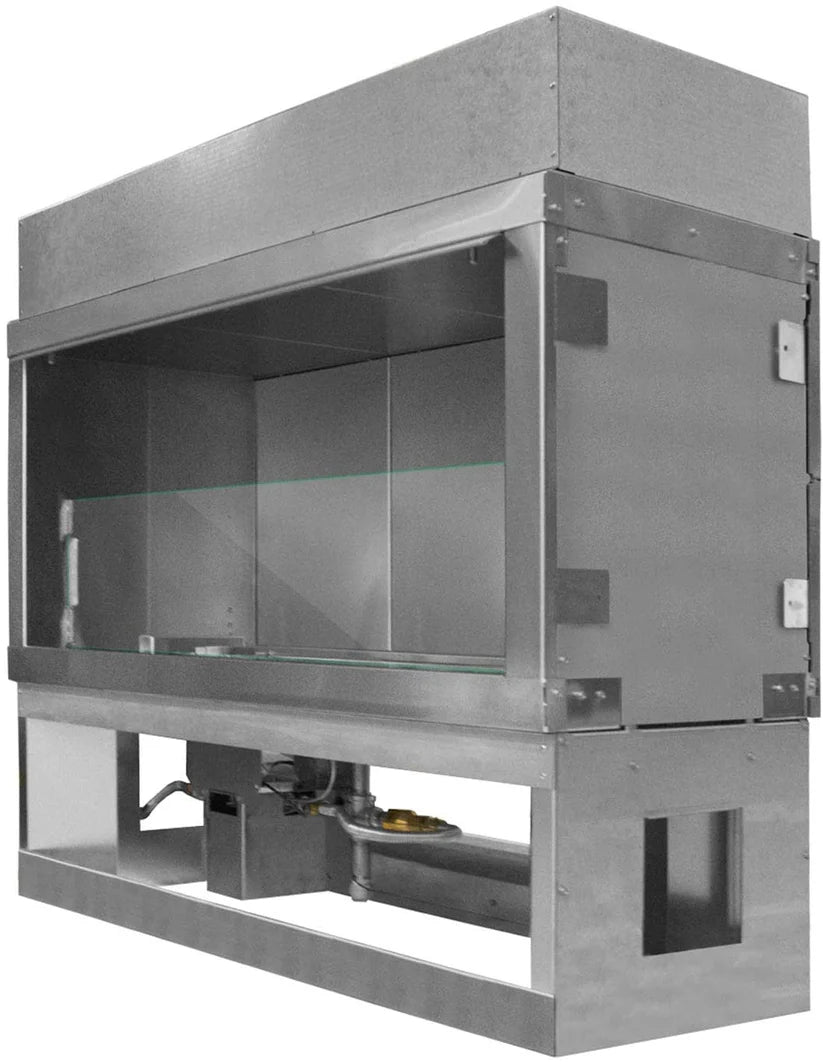

Durable 304 Stainless-Steel Construction

Outdoor fireplaces are exposed to conditions that indoor fireplaces never encounter.

For that reason, the Kalea Bay's firebox, burner assembly, and control cabinet are constructed using durable 304 stainless steel to help resist corrosion and withstand outdoor environments.

The clean stainless-steel interior also gives the fireplace a sophisticated contemporary appearance that pairs beautifully with stone, tile, concrete, brick, and other outdoor finishes.

EcoFlow Electronic Ignition

The Kalea Bay features an EcoFlow electronic ignition system designed to provide convenient operation along with important flame-safety functionality.

The system monitors the flame during operation and incorporates safety shutoff and automatic relight functionality if flame loss occurs.

High and low flame settings allow you to adjust the fire presentation to suit the atmosphere of your outdoor space.

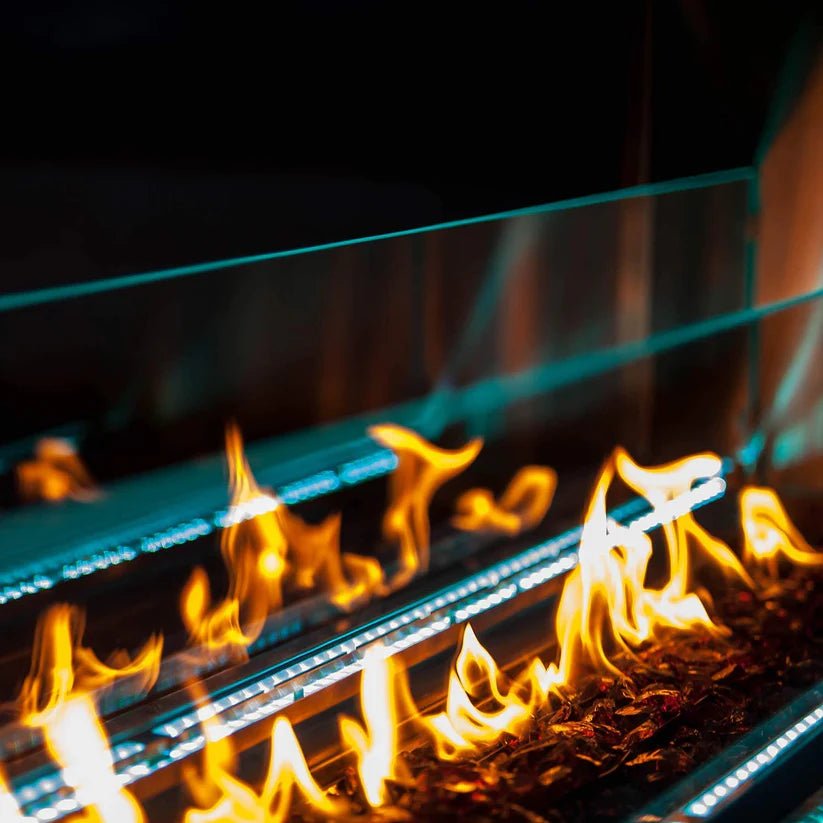

LED Lighting Option

Select Kalea Bay configurations are available with full-spectrum LED lighting, adding another layer of visual interest to the fireplace.

The lighting can create a beautiful glow beneath the decorative media and allows the fireplace to remain an architectural feature even when the flame isn't the only focus.

120VAC electrical power is required for LED models.

Natural Gas or Liquid Propane

The Kalea Bay is designed for gas operation and is available for Natural Gas or Liquid Propane, depending on the selected configuration.

Natural Gas models may be converted to Liquid Propane using the appropriate model-specific manufacturer conversion kit.

Always select or convert the fireplace for the fuel source available at the installation location.

Customize Your Fireplace

Complete the Kalea Bay with approved decorative fire media to create a look that complements your outdoor design.

Compatible media options include:

• Reflective fire glass
• Broken fire glass
• Lava rock
• Approved decorative media

The Kalea Bay requires approved media within the burner trough for proper installation.

Decorative media is sold separately.

Optional Accessories

Customize your installation with compatible accessories including:

• See-Through Conversion Kit
• Stainless-Steel Weather Cover
• Decorative Fire Glass
• Lava Rock
• Wire Harness Extensions
• Battery Pack Extension
• Natural Gas to Liquid Propane Conversion Kit

Accessories are model-specific and sold separately unless otherwise stated.

What's Included

• TrueFlame Kalea Bay Outdoor Linear Gas Fireplace
• Stainless-Steel Burner Assembly
• EcoFlow Ignition System
• Tempered Glass Wind Deflector
• Stainless-Steel Control Center
• Required Ventilation Components
• Installation Hardware and Manufacturer Documentation

Decorative fire media, weather cover, see-through conversion kit, and other optional accessories are sold separately unless specifically stated otherwise.

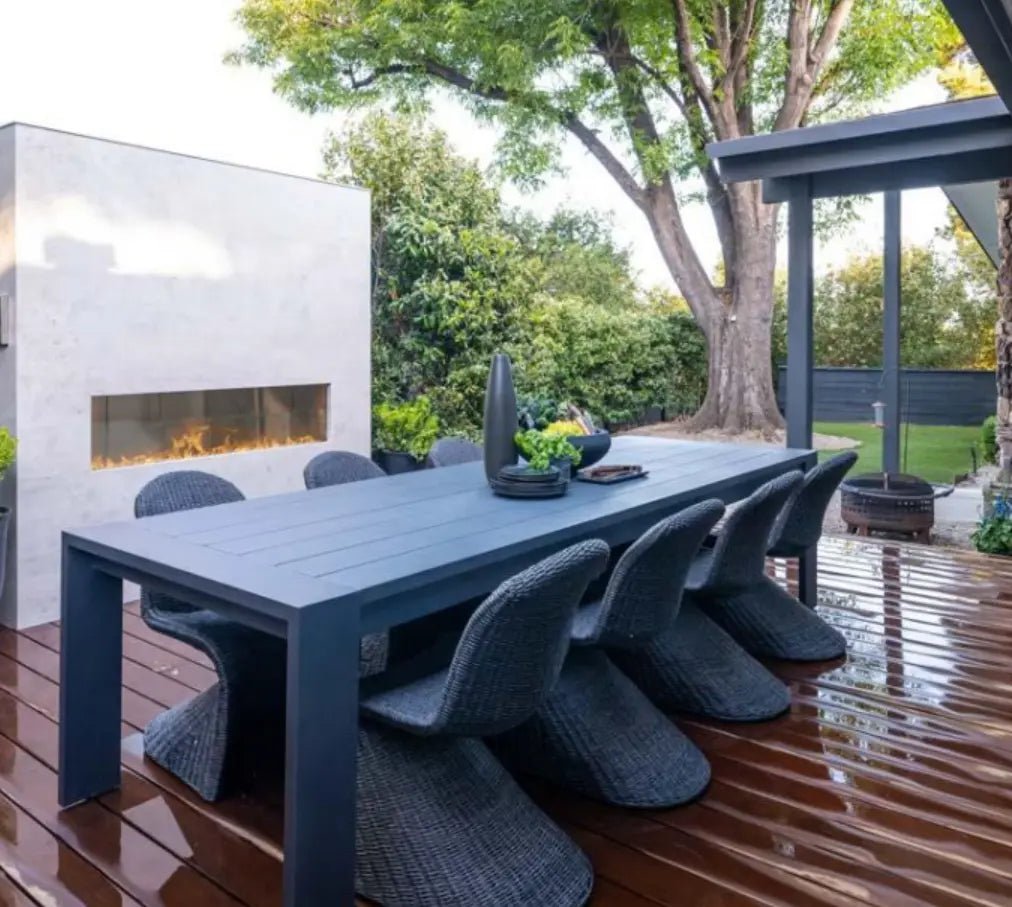

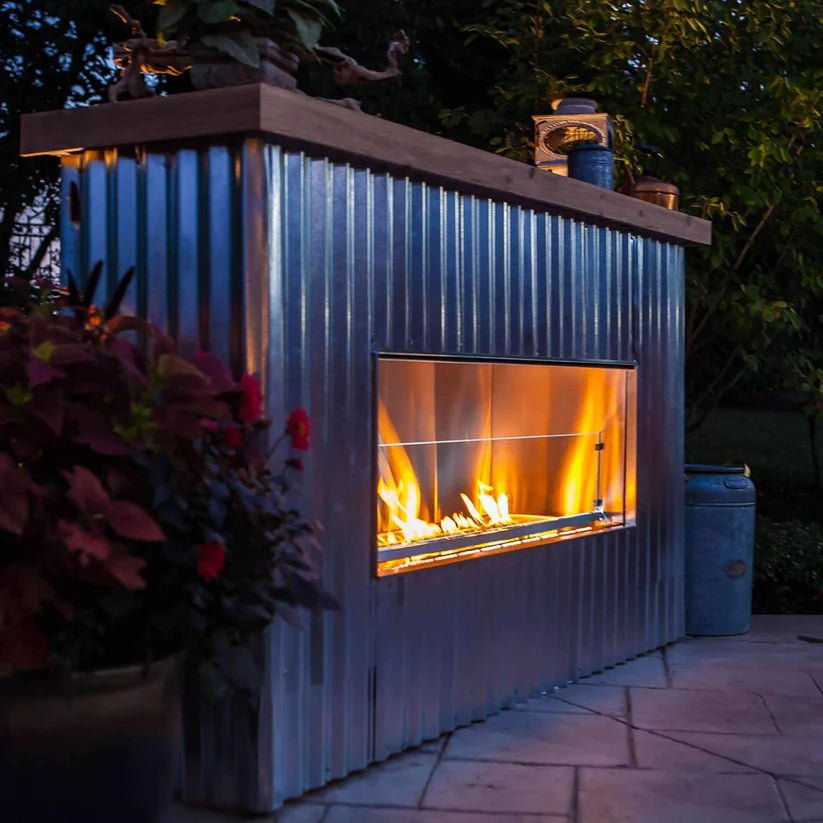

Designed for Outdoor Living

The Kalea Bay brings the look of a contemporary indoor linear fireplace into the outdoor environment.

Its clean lines and elongated flame make it a natural focal point for:

• Covered patios
• Outdoor kitchens
• Poolside living areas
• Courtyards
• Outdoor entertainment walls
• Pergolas and pavilions
• Rooftop terraces
• Residential and commercial hospitality spaces

Frame it with stone for a warm, natural appearance or surround it with porcelain, tile, or concrete for a more contemporary architectural design.

Important Installation Information

The Kalea Bay is designed for outdoor use only.

Although the fireplace does not require a chimney or conventional venting system, the enclosure does require proper cross ventilation. The manufacturer requires a minimum of 18 square inches of cross ventilation per side.

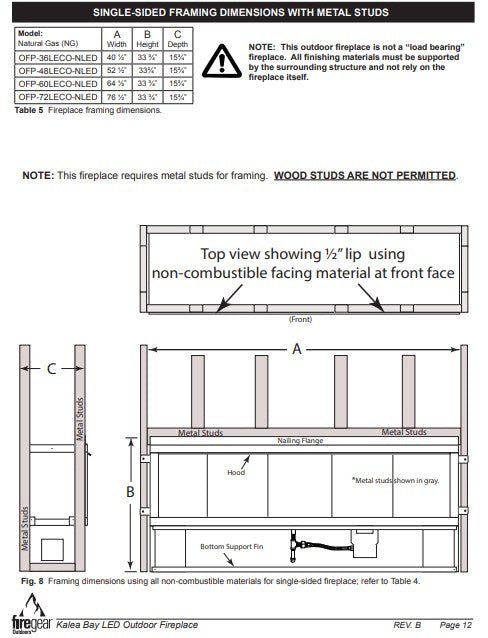

Installation and service should be performed by a qualified professional. Always follow the current manufacturer installation manual for framing dimensions, combustible clearances, ventilation, gas-line sizing, electrical requirements, media placement, and applicable local codes.

This listing is for the complete TrueFlame Kalea Bay Outdoor Linear Gas Fireplace. Optional media and accessories are sold separately unless specifically selected or stated otherwise.
